What is a prefabricated folding container house？
A prefabricated folding container house is a highly efficient and versatile modular housing solution. It uses a standard container as its base structure and features a folding design that allows the house to be expanded or collapsed, depending on the need. This type of container house is designed for easy transportation and quick assembly, offering flexibility in various residential, commercial, or office settings.

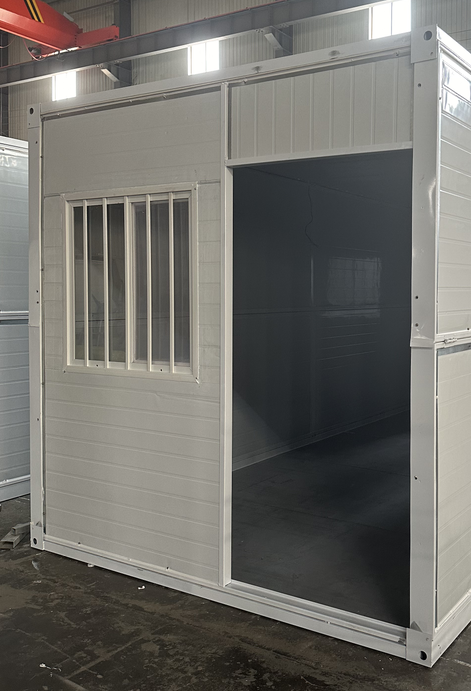

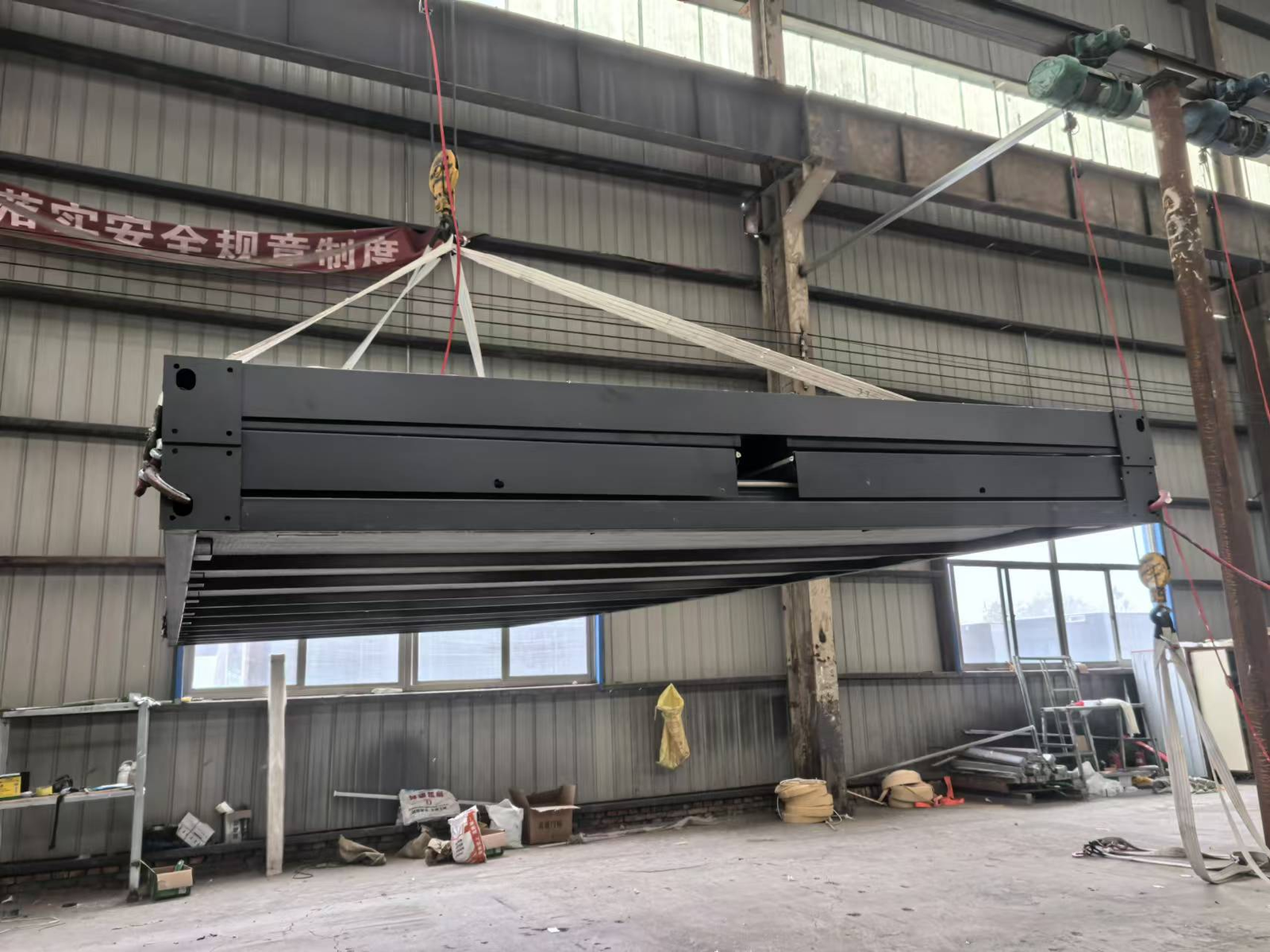

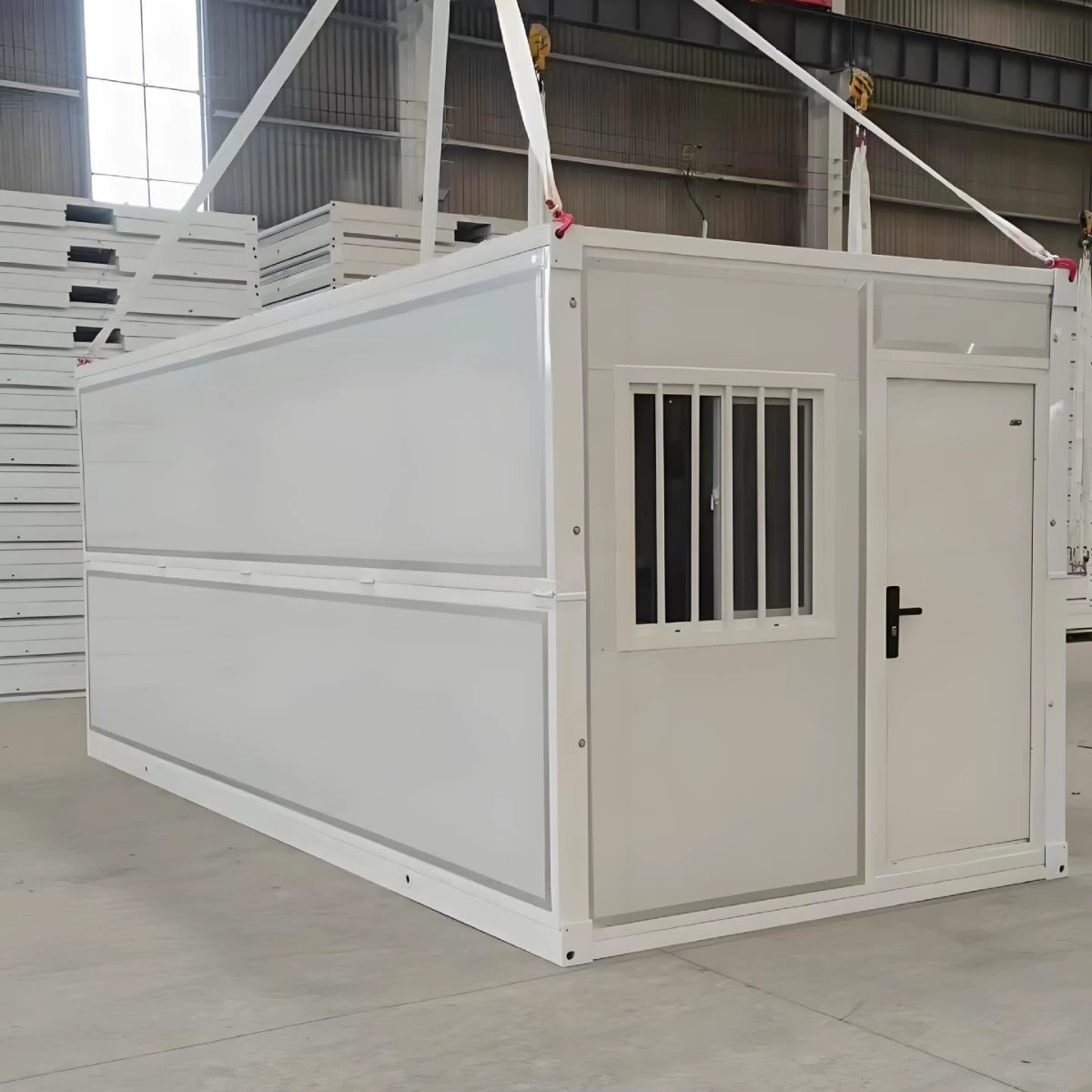

When not in use, the folding container house is compact, with the sides and roof folded in to minimize transportation space and weight. Once deployed, the sides are unfolded to reveal a larger, functional living or working area. This folding mechanism enables the container to significantly expand its usable space, making it an ideal choice for temporary accommodations, construction sites, or even permanent installations.
The structure of a prefabricated folding container house is made using durable materials, such as galvanized steel tubes and angle irons for the frame, with color-coated steel composite panels for the walls. The folding design is secured with high-strength hinges, ensuring easy setup and stability. Depending on the customer’s requirements, 20-foot and 40-foot units can be customized, providing scalable solutions for various needs.
Easy Installation
Quick and hassle-free setup, designed to get your space ready in no time.
Short Production Lead Time
Benefit from a fast manufacturing process, ensuring rapid delivery and setup.
Affordable Pricing
High-quality containers at a competitive price, providing the best value for your investment.
Container House Designs & Dimensions
Explore all available configurations and their detailed specifications.
| Project | Serial Number | Name | Detailed description | Dimensions and specifications | Quantity | Unit |
|---|---|---|---|---|---|---|
| Material parameters | Form 1 | Standard container | External dimensions ：2500mm（W）*5800mm（L）*2390m（H） Internal dimensions ：2370mm（W）*5635mm（L）*2265mm（H） Folded dimensions ：2500mm（W）*5800mm（L）*360mm(H） Weight：1.1t 40-foot high cube container: 12 sets | 1 | Set | |

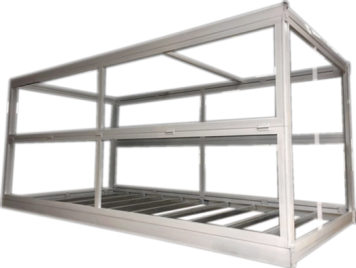

| 1 | Frame | Top girder | Special shaped steel galvanized concave convex pipe 63mm*80mm*1.5mm | 2 | Group | |
| Bottom girder | Galvanized square pipe 40mm*60mm | 2 | Root | |||
| Special shaped steel galvanized concave convex pipe 63mm*80mm*1.5mm | 2 | Group | ||||
| Top beam | Galvanized square pipe 50mm*50mm*1.5mm | 3 | Root | |||
| Top sub-beam | Galvanized square pipe 30mm*50mm*1.5mm | 3 | Root | |||
| Upper side of front and rear main beam | Galvanized square pipe 60mm*60mm*1.5mm | 2 | Root | |||
| Lower side of front and rear main beam | Special shaped steel galvanized concave convex pipe 63mm*80mm*1.5mm | 2 | Group | |||
| Sidewall frame | Special shaped steel galvanized concave convex pipe 63mm*80mm*1.5mm | 2 | Group | |||
| Bottom crossbeam | Galvanized square steel pipe 40mm*40mm*1.5mm | 14 | Root | |||
| column | Galvanized steel pipe 120mm*55mm*2.2mm | 4 | Root | |||
| Side wall column | Galvanized steel pipe with U-shaped groove 150mm*62mm*1.5mm | 2 | Group | |||

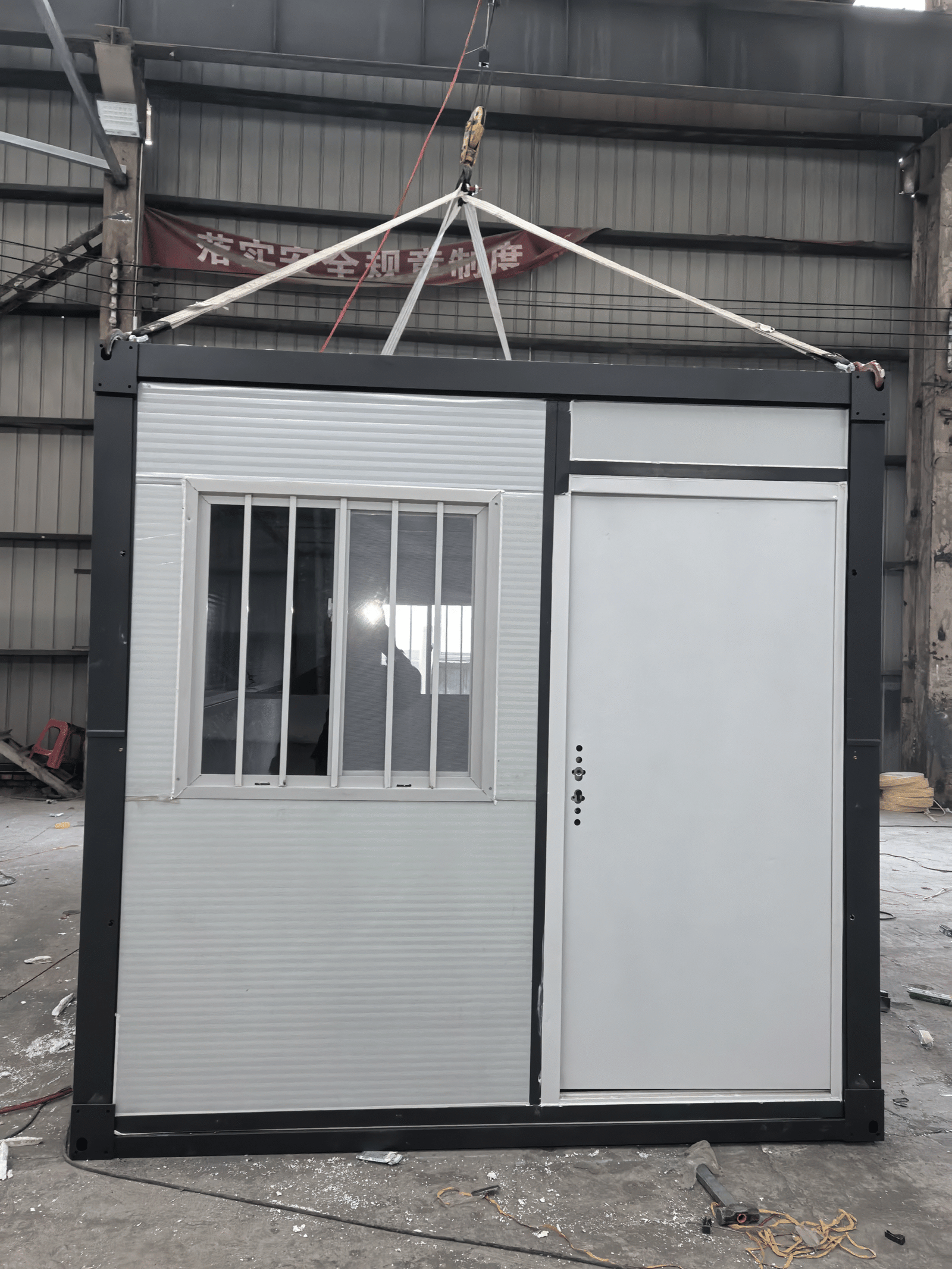

| Overhead lifting lug | Steel plate（180mm*100mm*15mm） | 4 | Block | |||
| Bottom suspension head | Steel plate（210mm*100mm*15mm） | 4 | Block | |||
| 304 stainless steel hinge | High-strength galvanized hinge85mm*115mm*3mm（Shaft column304stainless steel） | 36 | Unit | |||
| Integral frame protective coating | Cabaret high gloss enamel | 1 | Set | |||

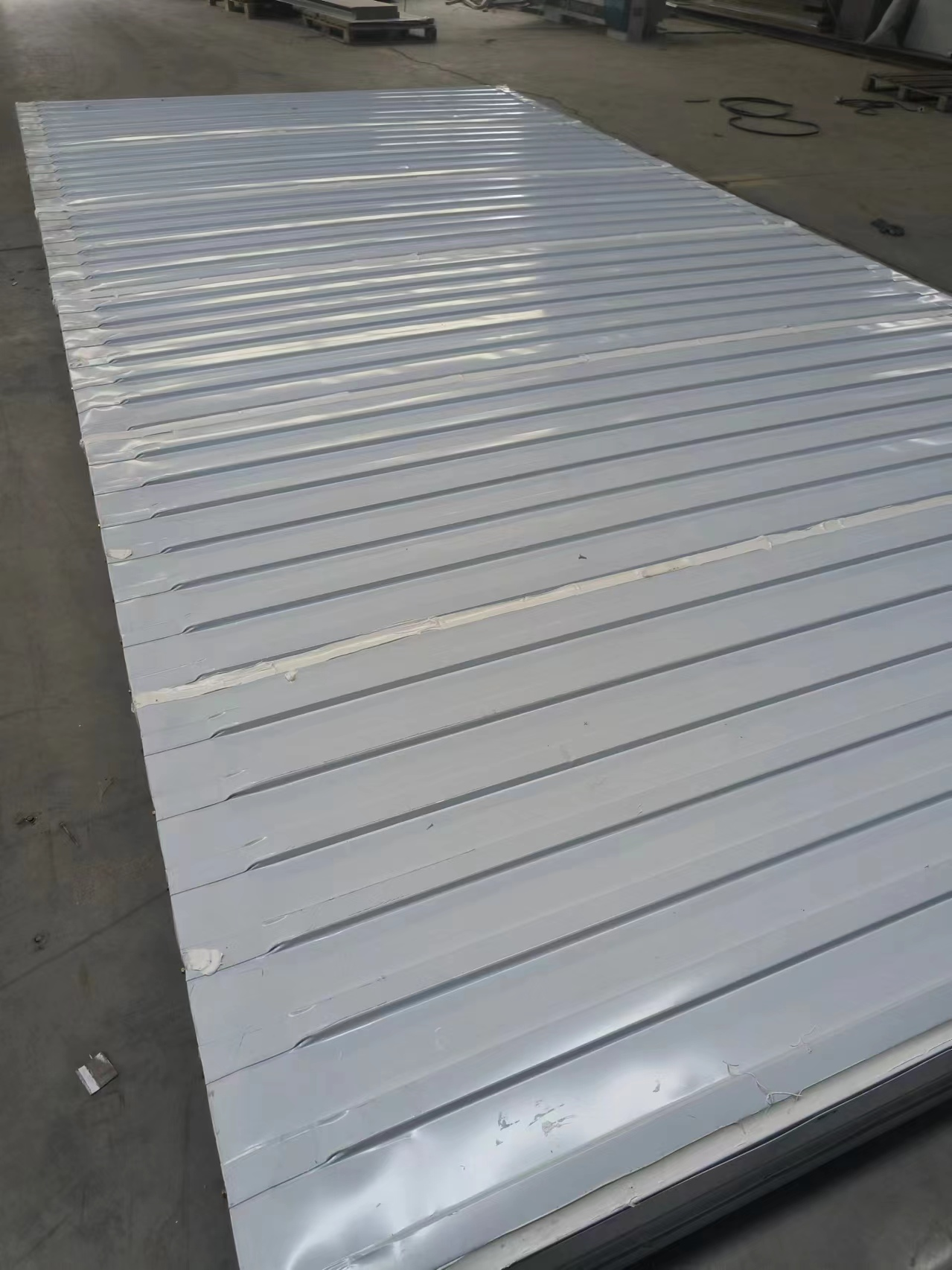

| 2 | Top of container | External roof | 1040 color steel tile（0.45mm） | 6 | Sheet | |

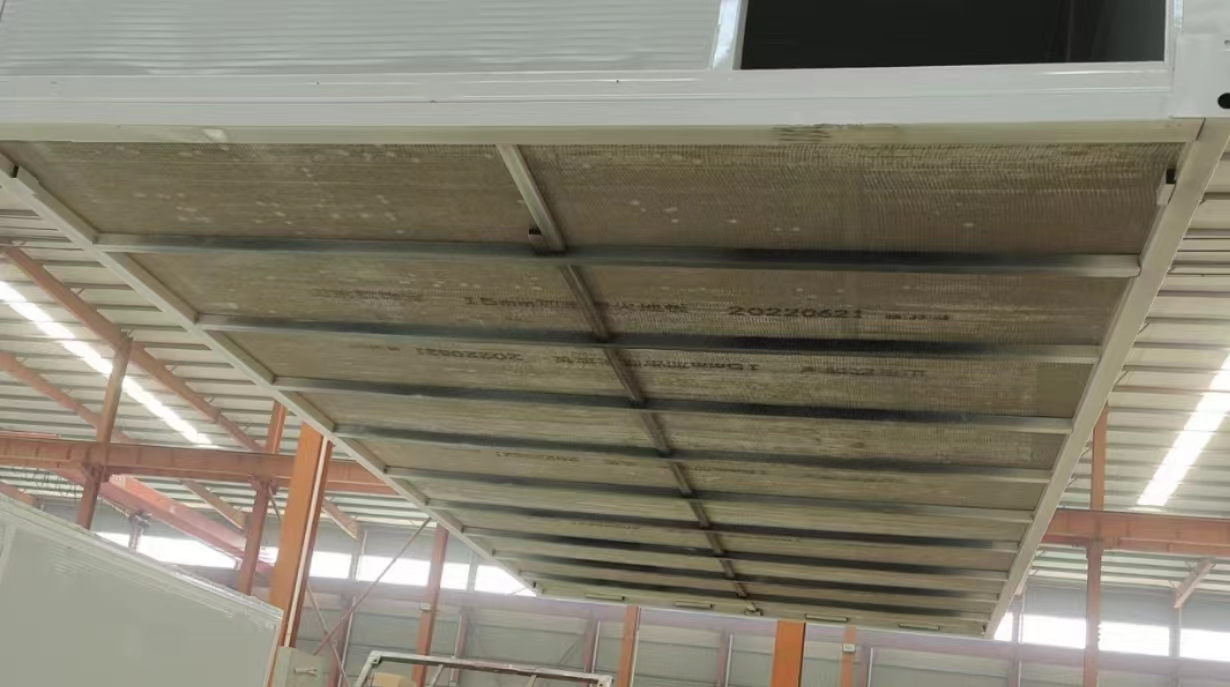

| Internal ceiling | 831 ceiling tile（0.28mm） | 7 | Sheet | |||
| Insulation glass wool | Bulk density 60kg/m³*14.5square | 14.5 | ㎡ | |||
| 3 | Floor | MGO floor | 50mm Thickness | 5 | Sheet | |

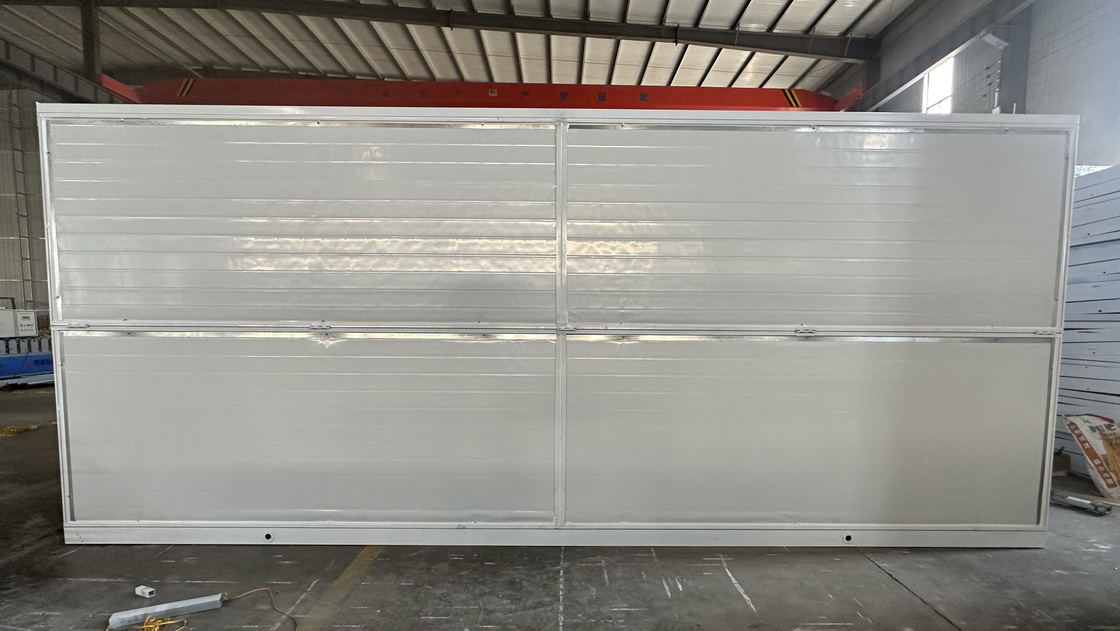

| 4 | Wallboard（Wall panels can be customized） | Heat insulation rock wool color steel composite sandwich panel (side wall) | 0.28mm color steel plate / 50mm / 65kg / m3 rock wool | 8 | Block | |
| Heat insulation rock wool color steel composite sandwich panel (Front and rear walls) | 0.28mm color steel plate / 50mm / 65kg / m³ rock wool | 6 | Block | |||

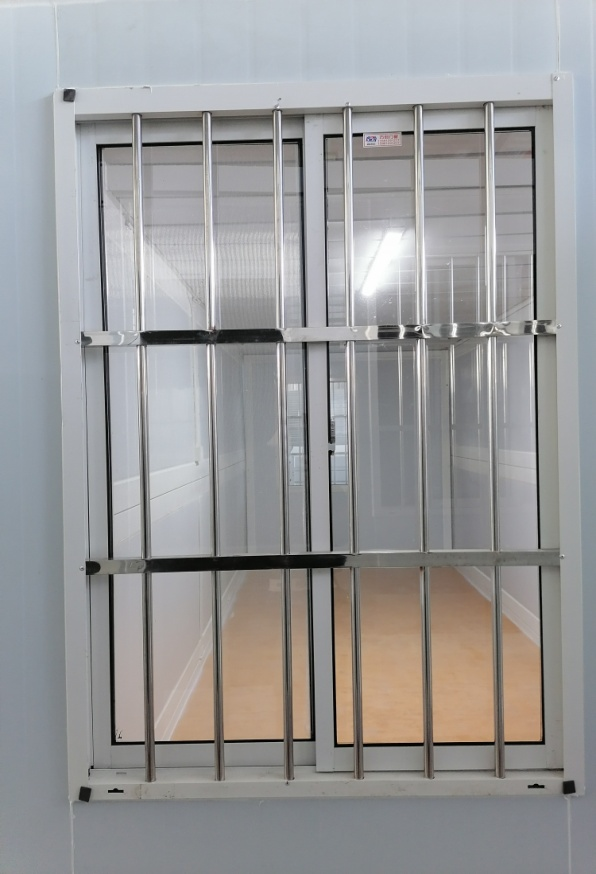

| 5 | Window | aluminum alloy anti-theft integrated window sliding series(push-pull Series) | 970mm*1215mm(With screen window) | 2 | Window | |
| 6 | Door | container special steel anti-theft door | 970mm*1970mm | 1 | Door | |
| 7 | Electrical system | circuit protector | 1 | Unit | ||
| Standard socket | 2 | Unit | ||||
| Single tube LED light 60W | 1 | Unit | ||||
| Special socket for air conditioner | 1 | Unit | ||||
| Light switch | 1 | Unit | ||||
| Technical parameters | Roof load-bearing | ≧50kg/m² | ||||
| Floor load-bearing capacity | ≧150kg/m² | |||||
| Corridor load-bearing capacity | ≧200kg/m² | |||||
| Wall side pressure | ≧80kg/m² | |||||
| Fire resistance rating | Class A Fireproof | |||||
| Wall deformation coefficient | ≦300kg/m² | |||||
| Seismic fortification intensity | Grade 10 seismic resistance | |||||
| Wind resistance level | Level 10 wind resistance | |||||
application
Multifunctional Modular Building
Quickly deployable to meet diverse needs, from construction sites and post-disaster recovery to commercial, medical, and educational facilities.
application
Construction Site Camps
application
Refugee Shelters
application
Agriculture
application
Solider Camps
application
Post - disaster Emergency
application
Medical
application
Multifunctional Modular Building
Quickly deployable to meet diverse needs, from construction sites and post-disaster recovery to commercial, medical, and educational facilities.
application
Construction Site Camps
application
Refugee Shelters
application
Agriculture
application
Solider Camps
application
Post - disaster Emergency
application
Medical
WHY CHOOSE US
Built for Resilience: Disaster-Proof Solutions
Our products are designed with the highest quality materials to withstand earthquakes, fires, and typhoons, ensuring safety and durability in the most extreme conditions.
Fire: Fire-Resistant Gypsum Board
Fire-resistant gypsum boards are widely used in construction for their superior fire resistance and thermal insulation properties. They contain chemically bound water that is released as moisture under high heat, slowing the spread of flames. As a result, these boards help maintain the building’s structural integrity and provide critical time for evacuation during a fire emergency.
Typhoon: Corten Steel
Corten steel, also known as weathering steel, is exceptionally resistant to high winds and corrosion. Its surface forms a stable protective oxide layer that shields against corrosive salt spray and wind-blown sand, preventing weather-related erosion. This combination of durability and wind resistance makes Corten steel ideal for structures in typhoon-prone regions.
Earthquake: Steel Structure
Steel structures are ideal for earthquake-resistant construction thanks to their high strength, ductility, and elasticity. They can flex under seismic stress without cracking, effectively absorbing and dissipating shock to prevent collapse. Steel frames also provide excellent stability while remaining lightweight, making them particularly suitable for earthquake-prone regions.
Fire: Fire-Resistant Gypsum Board
Fire-resistant gypsum boards are widely used in construction for their superior fire resistance and thermal insulation properties. They contain chemically bound water that is released as moisture under high heat, slowing the spread of flames. As a result, these boards help maintain the building’s structural integrity and provide critical time for evacuation during a fire emergency.
Typhoon: Corten Steel
Corten steel, also known as weathering steel, is exceptionally resistant to high winds and corrosion. Its surface forms a stable protective oxide layer that shields against corrosive salt spray and wind-blown sand, preventing weather-related erosion. This combination of durability and wind resistance makes Corten steel ideal for structures in typhoon-prone regions.
Earthquake: Steel Structure
Steel structures are ideal for earthquake-resistant construction thanks to their high strength, ductility, and elasticity. They can flex under seismic stress without cracking, effectively absorbing and dissipating shock to prevent collapse. Steel frames also provide excellent stability while remaining lightweight, making them particularly suitable for earthquake-prone regions.
HOW IT WORK
Our Process
Our process is designed to be simple, fast, and reliable. From the moment you place your order to the final handover, we ensure smooth communication and a seamless experience.
With quick manufacturing, cost-effective shipping, and hassle-free installation, we make sure your project is delivered on time, within budget, and to the highest standards of quality.
Order
Submit your specs and layout—our team confirms details, timeline, and pricing the same day.
Manufacturing
We build with pre-wired, pre-plumbed modules; one finished unit can be completed in as fast as 7 days.
Shipping
Foldable design cuts volume for easier customs and lower freight; we provide full tracking and documents.
Installation
Plug-and-play connectors enable rapid on-site setup—minimal tools, minimal site work, maximum speed.
